Name: 4JJHE (4 Flutes JJ 45° Helix End Mills for Hardened Steels) - JJ Tools
SKU: 4JJHE 003 006 S04, 4JJHE 010 025 S04 ~ 4JJHE 200 400 S20
Availability: InStock
Rating: 5 (1 reviews)

4JJHE (45° Helix End Mills for Hardened Steel, 4 Flutes) - JJ Tools

JJ series

Endmills for pre-hardened and hardened steels(HRc52~68)

• Good wear resistance by high quality Si-based PVD coating.
• High precise edge tolerance.
• Reinforced edge design for preventing edge chipping.
• Produce down to 0.03mm in diameter endmills at the first time in Korea.
• Outstanding performance at high speed machining by ultra fine (0.2㎛) WC grade.

4jjhe 010 025 S04

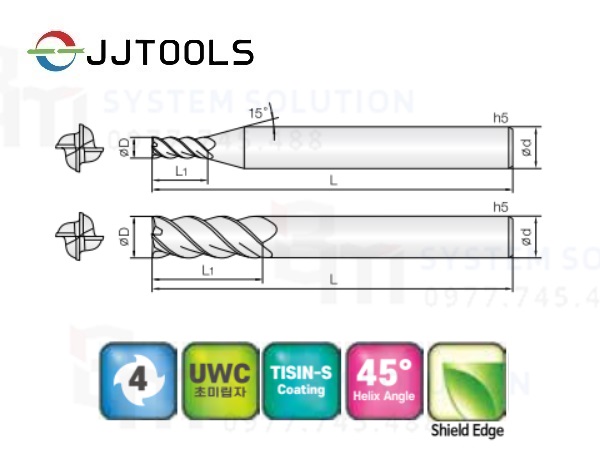

Order Number	날경 Diameter D	날장 Length of cut L1	전장 Overall Length L	생크 Shank Dia d
4JJHE 003 006 S04	0.3	0.6	40	4
4JJHE 004 008 S04	0.4	0.8	40	4
4JJHE 005 008 S04	0.5	0.8	40	4
4JJHE 005 010 S04	0.5	1	40	4
4JJHE 006 009 S04	0.6	0.9	40	4
4JJHE 006 012 S04	0.6	1.2	40	4
4JJHE 008 012 S04	0.8	1.2	40	4
4JJHE 008 020 S04	0.8	2	40	4
4JJHE 010 015 S04	1	1.5	40	4
4JJHE 010 015 S06	1	1.5	40	6
4JJHE 010 025 S04	1	2.5	40	4
4JJHE 010 025 S06	1	2.5	40	6
4JJHE 010 035 S04	1	3.5	40	4
4JJHE 010 035 S06	1	3.5	40	6
4JJHE 010 050 S06	1	5	45	6
4JJHE 015 040 S04	1.5	4	40	4
4JJHE 015 040 S06	1.5	4	40	6
4JJHE 015 060 S04	1.5	6	40	4
4JJHE 015 060 S06	1.5	6	40	6
4JJHE 015 080 S06	1.5	8	40	6
4JJHE 020 030 S04	2	3	40	4
4JJHE 020 030 S06	2	3	40	6
4JJHE 020 050 S04	2	5	40	4
4JJHE 020 050 S06	2	5	40	6
4JJHE 020 080 S06	2	8	40	6
4JJHE 020 100 S06	2	10	45	6
4JJHE 025 060 S04	2.5	6	45	4
4JJHE 025 060 S06	2.5	6	45	6
4JJHE 025 080 S04	2.5	8	45	4
4JJHE 025 080 S06	2.5	8	45	6
4JJHE 025 100 S06	2.5	10	50	6
4JJHE 030 060 S04	3	6	45	4
4JJHE 030 060 S06	3	6	45	6
4JJHE 030 080 S04	3	8	45	4
4JJHE 030 080 S06	3	8	45	6
4JJHE 030 120 S06	3	12	50	6
4JJHE 030 150 S06	3	15	50	6
4JJHE 035 080 S06	3.5	8	45	6
4JJHE 040 080 S06	4	8	45	6
4JJHE 040 110 S06	4	11	45	6
4JJHE 040 150 S06	4	15	55	6
4JJHE 040 200 S06	4	20	60	6
4JJHE 045 110 S06	4.5	11	50	6
4JJHE 050 100 S06	5	10	50	6
4JJHE 050 130 S06	5	13	50	6
4JJHE 050 200 S06	5	20	60	6
4JJHE 050 250 S06	5	25	70	6
4JJHE 050 300 S06	5	30	75	6
4JJHE 060 130 S06	6	13	50	6
4JJHE 060 150 S06	6	15	55	6
4JJHE 060 200 S06	6	20	60	6
4JJHE 060 250 S06	6	25	70	6
4JJHE 060 300 S06	6	30	75	6
4JJHE 070 160 S08	7	16	60	8
4JJHE 080 200 S08	8	20	60	8
4JJHE 080 250 S08	8	25	70	8
4JJHE 080 300 S08	8	30	80	8
4JJHE 080 400 S08	8	40	90	8
4JJHE 090 220 S10	9	22	70	10
4JJHE 100 220 S10	10	22	70	10
4JJHE 100 300 S10	10	30	80	10
4JJHE 100 400 S10	10	40	90	10
4JJHE 100 500 S10	10	50	100	10
4JJHE 120 260 S12	12	26	75	12
4JJHE 120 350 S12	12	35	90	12
4JJHE 120 500 S12	12	50	100	12
4JJHE 120 600 S12	12	60	110	12
4JJHE 140 350 S14	14	35	90	14
4JJHE 140 550 S14	14	55	110	14
4JJHE 160 350 S16	16	35	90	16
4JJHE 160 500 S16	16	50	110	16
4JJHE 160 700 S16	16	70	130	16
4JJHE 180 380 S18	18	38	100	18
4JJHE 200 400 S20	20	40	100	20
4JJHE 200 550 S20	20	55	120	20
4JJHE 200 750 S20	20	75	150	20
