PRODUCT DESCRIPTION

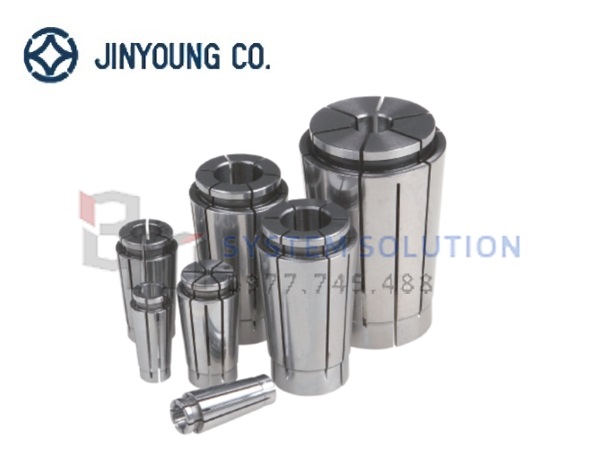

SK Collet Standard type - Jinyoung
- Strong gripping for 8° Taper
- Standard type runout: 0.005
- P Class runout: 0.003

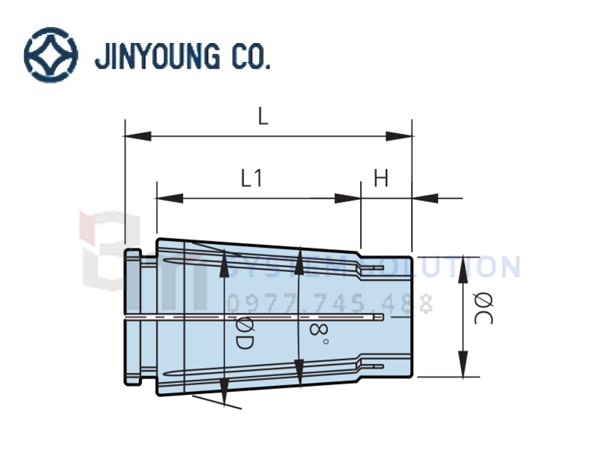

| Order No. | Range | ØD | L | ØC | L1 | H |
| SK 6-Ø1.0~6.0 | 0.25 | 10 | 25 | 7.5 | 17.6 | 3.8 |
| SK10-Ø2.0~10.0 | 0.5 | 15 | 30.5 | 12 | 21.3 | 5 |
| SK13-Ø3.0~13.0 | 0.5 | 19.5 | 39 | 15.5 | 28.5 | 5.5 |
| SK16-Ø3.0~16.0 | 0.5 | 24 | 45 | 18.8 | 32 | 8 |
| SK20-Ø4.0~20.0 | 0.5 | 28.5 | 54 | 23.4 | 41 | 8 |
| SK25-Ø16~25.4 | 0.5 | 35 | 57 | 28.9 | 43 | 8.5 |
