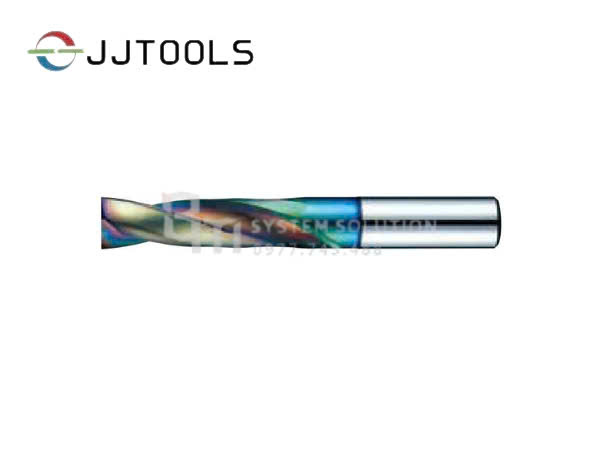

Carbide 2 Flutes, Multi-Processing Flat Drills
-
Flat drills for materials up to HRC50, pre-hardened steels, alloy steels, cast irons.
-
With flat type of end face, excellent performance drilling is available to a variety of inclined and curved surfaces.
-
Chip emission is great and stable drilling is available with 20 degree helix design.
-
Minimize burrs during penetration drilling.
-
Increased tool life by applying HR coating with great heat and wear resistance.
![]()

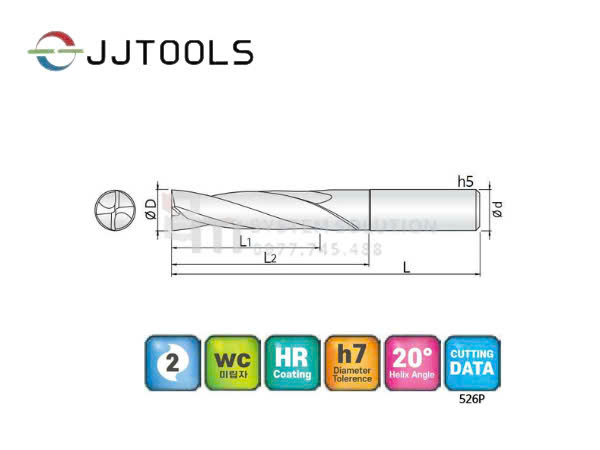

Order Number
날경
Diameter
D홈길이
Flute
Length
L1유효장
Effective
Length
L2전장
Overall
Length
L생크
Shank
Dia
d2FDR0 020 09S S03
0.2
0.8
0.9
50
3
2FDR0 025 011S S03
0.25
1
1.1
50
3
2FDR0 030 13S S03
0.3
1.2
1.3
50
3
2FDR0 035 015S S03
0.35
1.4
1.5
50
3
2FDR0 040 17S S03
0.4
1.6
1.7
50
3
2FDR0 045 019S S03
0.45
1.8
1.9
50
3
2FDR0 050 22S S03
0.5
2
2.2
50
3
2FDR0 055 024S S03
0.55
2.2
2.4
50
3
2FDR0 060 26S S03
0.6
2.4
2.6
50
3
2FDR0 065 028S S03
0.65
2.6
2.8
50
3
2FDR0 070 30S S03
0.7
2.8
3
50
3
2FDR0 075 032S S03
0.75
3
3.2
50
3
2FDR0 080 34S S03
0.8
3.2
3.4
50
3
2FDR0 085 037S S03
0.85
3.4
3.7
50
3
2FDR0 090 39S S03
0.9
3.6
3.9
50
3
2FDR0 095 041S S03
0.95
3.8
4.1
50
3
2FDR0 100 43S S03
1
4
4.3
50
3
2FDR0 110 47S S03
1.1
4.4
4.7
50
3
2FDR0 120 52S S03
1.2
4.8
5.2
50
3
2FDR0 130 56S S03
1.3
5.2
5.6
50
3
2FDR0 140 60S S03
1.4
5.6
6
50
3
2FDR0 150 65S S03
1.5
6
6.5
50
3
2FDR0 160 69S S03
1.6
6.4
6.9
50
3
2FDR0 170 73S S03
1.7
6.8
7.3
50
3
2FDR0 180 77S S03
1.8
7.2
7.7
50
3
2FDR0 190 82S S03
1.9
7.6
8.2
50
3
2FDR0 200 86S S04
2
8
8.6
50
4
2FDR0 200 98S S04
2
9.8
50
4
2FDR0 210 90S S04
2.1
8.4
9
50
4
2FDR0 220 95S S04
2.2
8.8
9.5
50
4
2FDR0 230 99S S04
2.3
9.2
9.9
50
4
2FDR0 241 03S S04
2.4
9.6
10.3
50
4
2FDR0 251 08S S04
2.5
10
10.8
50
4
2FDR0 261 12S S04
2.6
10.4
11.2
50
4
2FDR0 271 16S S04
2.7
10.8
11.6
50
4
2FDR0 281 20S S04
2.8
11.2
12
50
4
2FDR0 291 25S S04
2.9
11.6
12.5
50
4
2FDR0 301 29S S06
3
12
12.9
50
6
2FDR0 311 33S S06
3.1
12.4
13.3
50
6
2FDR0 321 38S S06
3.2
12.8
13.8
50
6
2FDR0 331 42S S06
3.3
13.2
14.2
50
6
2FDR0 341 46S S06
3.4
13.6
14.6
50
6
2FDR0 351 51S S06
3.5
14
15.1
50
6
2FDR0 361 55S S06
3.6
14.4
15.5
50
6
2FDR0 371 59S S06
3.7
14.8
15.9
50
6
2FDR0 381 63S S06
3.8
15.2
16.3
50
6
2FDR0 391 68S S06
3.9
15.6
16.8
50
6
2FDR0 401 72S S06
4
16
17.2
50
6
2FDR0 411 76S S06
4.1
16.4
17.6
60
6
2FDR0 421 81S S06
4.2
16.8
18.1
60
6
2FDR0 431 85S S06
4.3
17.2
18.5
60
6
2FDR0 441 89S S06
4.4
17.6
18.9
60
6
2FDR0 451 94S S06
4.5
18
19.4
60
6
2FDR0 461 98S S06
4.6
18.4
19.8
60
6
2FDR0 472 02S S06
4.7
18.8
20.2
60
6
2FDR0 482 06S S06
4.8
19.2
20.6
60
6
2FDR0 492 11S S06
4.9
19.6
21.1
60
6
2FDR0 502 15S S06
5
20
21.5
60
6
2FDR0 512 19S S06
5.1
20.4
21.9
60
6
2FDR0 522 24S S06
5.2
20.8
22.4
60
6
2FDR0 532 28S S06
5.3
21.2
22.8
60
6
2FDR0 542 32S S06
5.4
21.6
23.2
60
6
2FDR0 552 37S S06
5.5
22
23.7
60
6
2FDR0 562 41S S06
5.6
22.4
24.1
60
6
2FDR0 572 45S S06
5.7
22.8
24.5
60
6
2FDR0 582 49S S06
5.8
23.2
24.9
60
6
2FDR0 592 54S S06
5.9
23.6
25.4
60
6
2FDR0 602 58S S06
6
24
25.8
60
6
2FDR0 612 62S S08
6.1
24.4
26.2
70
8
2FDR0 622 67S S08
6.2
24.8
26.7
70
8
2FDR0 632 71S S08
6.3
25.2
27.1
70
8
2FDR0 642 75S S08
6.4
25.6
27.5
70
8
2FDR0 652 80S S08
6.5
26
28
70
8
2FDR0 662 84S S08
6.6
26.4
28.4
70
8
2FDR0 672 88S S08
6.7
26.8
28.8
70
8
2FDR0 682 92S S08
6.8
27.2
29.2
70
8
2FDR0 692 97S S08
6.9
27.6
29.7
70
8
2FDR0 703 01S S08
7
28
30.1
70
8
2FDR0 713 05S S08
7.1
28.4
30.5
70
8
2FDR0 723 10S S08
7.2
28.8
31
70
8
2FDR0 733 14S S08
7.3
29.2
31.4
70
8
2FDR0 743 18S S08
7.4
29.6
31.8
70
8
2FDR0 753 23S S08
7.5
30
32.3
70
8
2FDR0 763 27S S08
7.6
30.4
32.7
70
8
2FDR0 773 31S S08
7.7
30.8
33.1
70
8
2FDR0 783 35S S08
7.8
31.2
33.5
70
8
2FDR0 793 40S S08
7.9
31.6
34
70
8
2FDR0 803 44S S08
8
32
34.4
70
8
2FDR0 813 48S S10
8.1
32.4
34.8
80
10
2FDR0 823 53S S10
8.2
32.8
35.3
80
10
2FDR0 833 57S S10
8.3
33.2
35.7
80
10
2FDR0 843 61S S10
8.4
33.6
36.1
80
10
2FDR0 853 66S S10
8.5
34
36.6
80
10
2FDR0 863 70S S10
8.6
34.4
37
80
10
2FDR0 873 74S S10
8.7
34.8
37.4
80
10
2FDR0 883 78S S10
8.8
35.2
37.8
80
10
2FDR0 893 83S S10
8.9
35.6
38.3
80
10
2FDR0 903 87S S10
9
36
38.7
80
10
2FDR0 913 91S S10
9.1
36.4
39.1
80
10
2FDR0 923 96S S10
9.2
36.8
39.6
80
10
2FDR0 934 00S S10
9.3
37.2
40
80
10
2FDR0 944 04S S10
9.4
37.6
40.4
80
10
2FDR0 954 09S S10
9.5
38
40.9
80
10
2FDR0 964 13S S10
9.6
38.4
41.3
80
10
2FDR0 974 17S S10
9.7
38.8
41.7
80
10
2FDR0 984 21S S10
9.8
39.2
42.1
80
10
2FDR0 994 26S S10
9.9
39.6
42.6
80
10
2FDR1 004 30S S10
10
40
43
80
10
2FDR1 014 34S S12
10.1
40.4
43.4
90
12
2FDR1 024 39S S12
10.2
40.8
43.9
90
12
2FDR1 034 43S S12
10.3
41.2
44.3
90
12
2FDR1 044 47S S12
10.4
41.6
44.7
90
12
2FDR1 054 52S S12
10.5
42
45.2
90
12
2FDR1 064 56S S12
10.6
42.4
45.6
90
12
2FDR1 074 60S S12
10.7
42.8
46
90
12
2FDR1 084 64S S12
10.8
43.2
46.4
90
12
2FDR1 094 69S S12
10.9
43.6
46.9
90
12
2FDR1 104 73S S12
11
44
47.3
90
12
2FDR1 114 77S S12
11.1
44.4
47.7
90
12
2FDR1 124 82S S12
11.2
44.8
48.2
90
12
2FDR1 134 86S S12
11.3
45.2
48.6
90
12
2FDR1 144 90S S12
11.4
45.6
49
90
12
2FDR1 154 95S S12
11.5
46
49.5
90
12
2FDR1 164 99S S12
11.6
46.4
49.9
90
12
2FDR1 175 03S S12
11.7
46.8
50.3
90
12
2FDR1 185 07S S12
11.8
47.2
50.7
90
12
2FDR1 195 12S S12
11.9
47.6
51.2
90
12
2FDR1 205 16S S12
12
48
51.6
90
12
2FDR1 205 70S S12
12
57
90
12
2FDR1 215 20S S14
12.1
48.4
52
100
14
2FDR1 225 25S S14
12.2
48.8
52.5
100
14
2FDR1 235 29S S14
12.3
49.2
52.9
100
14
2FDR1 245 33S S14
12.4
49.6
53.3
100
14
2FDR1 255 38S S14
12.5
50
53.8
100
14
2FDR1 265 42S S14
12.6
50.4
54.2
100
14
2FDR1 275 46S S14
12.7
50.8
54.6
100
14
2FDR1 285 50S S14
12.8
51.2
55
100
14
2FDR1 295 55S S14
12.9
51.6
55.5
100
14
2FDR1 305 59S S14
13
52
55.9
100
14
2FDR1 315 63S S14
13.1
52.4
56.3
100
14
2FDR1 325 68S S14
13.2
52.8
56.8
100
14
2FDR1 335 72S S14
13.3
53.2
57.2
100
14
2FDR1 345 76S S14
13.4
53.6
57.6
100
14
2FDR1 355 81S S14
13.5
54
58.1
100
14
2FDR1 365 85S S14
13.6
54.4
58.5
100
14
2FDR1 375 89S S14
13.7
54.8
58.9
100
14
2FDR1 385 93S S14
13.8
55.2
59.3
100
14
2FDR1 395 98S S14
13.9
55.6
59.8
100
14
2FDR1 406 02S S14
14
56
60.2
100
14
2FDR1 416 06S S16
14.1
56.4
60.6
105
16
2FDR1 426 11S S16
14.2
56.8
61.1
105
16
2FDR1 436 15S S16
14.3
57.2
61.5
105
16
2FDR1 446 19S S16
14.4
57.6
61.9
105
16
2FDR1 456 24S S16
14.5
58
62.4
105
16
2FDR1 466 28S S16
14.6
58.4
62.8
105
16
2FDR1 476 32S S16
14.7
58.8
63.2
105
16
2FDR1 486 36S S16
14.8
59.2
63.6
105
16
2FDR1 496 41S S16
14.9
59.6
64.1
105
16
2FDR1 506 45S S16
15
60
64.5
105
16
2FDR1 516 49S S16
15.1
60.4
64.9
115
16
2FDR1 526 54S S16
15.2
60.8
65.4
115
16
2FDR1 536 58S S16
15.3
61.2
65.8
115
16
2FDR1 546 62S S16
15.4
61.6
66.2
115
16
2FDR1 556 67S S16
15.5
62
66.7
115
16
2FDR1 566 71S S16
15.6
62.4
67.1
115
16
2FDR1 576 75S S16
15.7
62.8
67.5
115
16
2FDR1 586 79S S16
15.8
63.2
67.9
115
16
2FDR1 596 84S S16
15.9
63.6
68.4
115
16
2FDR1 606 88S S16
16
64
68.8
115
16
2FDR1 657 10S S18
16.5
66
71
125
18
2FDR1 707 31S S18
17
68
73.1
125
18
2FDR1 757 53S S18
17.5
70
75.3
125
18
2FDR1 807 74S S18
18
72
77.4
125
18
2FDR1 857 96S S20
18.5
74
79.6
135
20
2FDR1 908 17S S20
19
76
81.7
135
20
2FDR1 958 39S S20
19.5
78
83.9
145
20
2FDR2 008 60S S20
20
80
86
145
20
