Name: 2FDRL Carbide 2 Flutes, Multi-Processing Flat Drills with Long Shank
SKU: 6E8GWIKT2U
Availability: InStock
Rating: 5 (1 reviews)

Carbide 2 Flutes, Multi-Processing Flat Drills with Long Shank

Flat drills for materials up to HRC50, pre-hardened steels, alloy steels, cast irons.
With flat type of end face, excellent performance drilling is available to a variety of inclined and curved surfaces.
Chip emission is great and stable drilling is available with 20 degree helix design.
Minimize burrs during penetration drilling.
Increased tool life by applying HR coating with great heat and wear resistance.

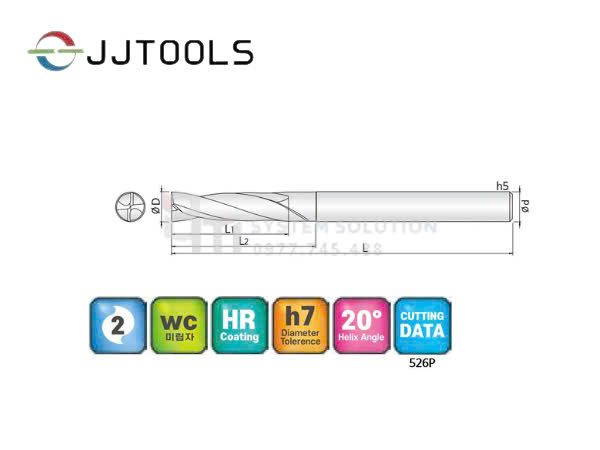

Order Number	날경 Diameter D	홈길이 Flute Length L1	유효장 Effective Length L2	전장 Overall Length L	생크 Shank Dia d
2FDRL 030 300S S06	3	12	30	100	6
2FDRL 031 310S S06	3.1	12.4	31	100	6
2FDRL 032 320S S06	3.2	12.8	32	100	6
2FDRL 033 330S S06	3.3	13.2	33	100	6
2FDRL 034 340S S06	3.4	13.6	34	100	6
2FDRL 035 350S S06	3.5	14	35	100	6
2FDRL 036 360S S06	3.6	14.4	36	100	6
2FDRL 037 370S S06	3.7	14.8	37	100	6
2FDRL 038 380S S06	3.8	15.2	38	100	6
2FDRL 039 390S S06	3.9	15.6	39	100	6
2FDRL 040 400S S06	4	16	40	100	6
2FDRL 041 410S S06	4.1	16.4	41	100	6
2FDRL 042 420S S06	4.2	16.8	42	100	6
2FDRL 043 430S S06	4.3	17.2	43	100	6
2FDRL 044 440S S06	4.4	17.6	44	100	6
2FDRL 045 450S S06	4.5	18	45	100	6
2FDRL 046 460S S06	4.6	18.4	46	100	6
2FDRL 047 470S S06	4.7	18.8	47	100	6
2FDRL 048 480S S06	4.8	19.2	48	100	6
2FDRL 049 490S S06	4.9	19.6	49	100	6
2FDRL 050 500S S06	5	20	50	100	6
2FDRL 051 510S S06	5.1	20.4	51	110	6
2FDRL 052 520S S06	5.2	20.8	52	110	6
2FDRL 053 530S S06	5.3	21.2	53	110	6
2FDRL 054 540S S06	5.4	21.6	54	110	6
2FDRL 055 550S S06	5.5	22	55	110	6
2FDRL 056 560S S06	5.6	22.4	56	110	6
2FDRL 057 570S S06	5.7	22.8	57	110	6
2FDRL 058 580S S06	5.8	23.2	58	110	6
2FDRL 059 590S S06	5.9	23.6	59	110	6
2FDRL 060 480S S06	6	24	48	110	6
2FDRL 061 488S S08	6.1	24.4	48.8	120	8
2FDRL 062 496S S08	6.2	24.8	49.6	120	8
2FDRL 063 504S S08	6.3	25.2	50.4	120	8
2FDRL 064 512S S08	6.4	25.6	51.2	120	8
2FDRL 065 520S S08	6.5	26	52	120	8
2FDRL 066 528S S08	6.6	26.4	52.8	120	8
2FDRL 067 536S S08	6.7	26.8	53.6	120	8
2FDRL 068 544S S08	6.8	27.2	54.4	120	8
2FDRL 069 552S S08	6.9	27.6	55.2	120	8
2FDRL 070 560S S08	7	28	56	120	8
2FDRL 071 568S S08	7.1	28.4	56.8	120	8
2FDRL 072 576S S08	7.2	28.8	57.6	120	8
2FDRL 073 584S S08	7.3	29.2	58.4	120	8
2FDRL 074 592S S08	7.4	29.6	59.2	120	8
2FDRL 075 600S S08	7.5	30	60	120	8
2FDRL 076 608S S08	7.6	30.4	60.8	120	8
2FDRL 077 616S S08	7.7	30.8	61.6	120	8
2FDRL 078 624S S08	7.8	31.2	62.4	120	8
2FDRL 079 632S S08	7.9	31.6	63.2	120	8
2FDRL 080 640S S08	8	32	64	120	8
2FDRL 081 648S S10	8.1	32.4	64.8	130	10
2FDRL 082 656S S10	8.2	32.8	65.6	130	10
2FDRL 083 664S S10	8.3	33.2	66.4	130	10
2FDRL 084 672S S10	8.4	33.6	67.2	130	10
2FDRL 085 680S S10	8.5	34	68	130	10
2FDRL 086 688S S10	8.6	34.4	68.8	130	10
2FDRL 087 696S S10	8.7	34.8	69.6	130	10
2FDRL 088 704S S10	8.8	35.2	70.4	130	10
2FDRL 089 712S S10	8.9	35.6	71.2	130	10
2FDRL 090 720S S10	9	36	72	130	10
2FDRL 091 728S S10	9.1	36.4	72.8	130	10
2FDRL 092 736S S10	9.2	36.8	73.6	130	10
2FDRL 093 744S S10	9.3	37.2	74.4	130	10
2FDRL 094 752S S10	9.4	37.6	75.2	130	10
2FDRL 095 760S S10	9.5	38	76	130	10
2FDRL 096 768S S10	9.6	38.4	76.8	130	10
2FDRL 097 776S S10	9.7	38.8	77.6	130	10
2FDRL 098 784S S10	9.8	39.2	78.4	130	10
2FDRL 099 792S S10	9.9	39.6	79.2	130	10
2FDRL 100 800S S10	10	40	80	130	10
2FDRL 101 808S S12	10.1	40.4	80.8	150	12
2FDRL 102 816S S12	10.2	40.8	81.6	150	12
2FDRL 103 824S S12	10.3	41.2	82.4	150	12
2FDRL 104 832S S12	10.4	41.6	83.2	150	12
2FDRL 105 840S S12	10.5	42	84	150	12
2FDRL 106 848S S12	10.6	42.4	84.8	150	12
2FDRL 107 856S S12	10.7	42.8	85.6	150	12
2FDRL 108 864S S12	10.8	43.2	86.4	150	12
2FDRL 109 872S S12	10.9	43.6	87.2	150	12
2FDRL 110 880S S12	11	44	88	150	12
2FDRL 111 888S S12	11.1	44.4	88.8	150	12
2FDRL 112 896S S12	11.2	44.8	89.6	150	12
2FDRL 113 904S S12	11.3	45.2	90.4	150	12
2FDRL 114 912S S12	11.4	45.6	91.2	150	12
2FDRL 115 920S S12	11.5	46	92	150	12
2FDRL 116 928S S12	11.6	46.4	92.8	150	12
2FDRL 117 936S S12	11.7	46.8	93.6	150	12
2FDRL 118 944S S12	11.8	47.2	94.4	150	12
2FDRL 119 952S S12	11.9	47.6	95.2	150	12
2FDRL 120 960S S12	12	48	96	150	12
2FDRL 125 1000 S14	12.5	50	100	180	14
2FDRL 130 1040 S14	13	52	104	180	14
2FDRL 135 1080 S14	13.5	54	108	180	14
2FDRL 140 1120 S14	14	56	112	180	14
2FDRL 145 1160 S16	14.5	58	116	200	16
2FDRL 150 1200 S16	15	60	120	200	16
2FDRL 155 1240 S16	15.5	62	124	200	16
2FDRL 160 1280 S16	16	64	128	200	16
2FDRL 165 1320 S18	16.5	66	132	220	18
2FDRL 170 1360 S18	17	68	136	220	18
2FDRL 175 1400 S18	17.5	70	140	220	18
2FDRL 180 1440 S18	18	72	144	220	18
2FDRL 185 1480 S20	18.5	74	148	250	20
2FDRL 190 1520 S20	19	76	152	250	20
2FDRL 195 1560 S20	19.5	78	156	250	20
2FDRL 200 1600 S20	20	80	160	250	20

2FDRL Carbide 2 Flutes, Multi-Processing Flat Drills with Long Shank
