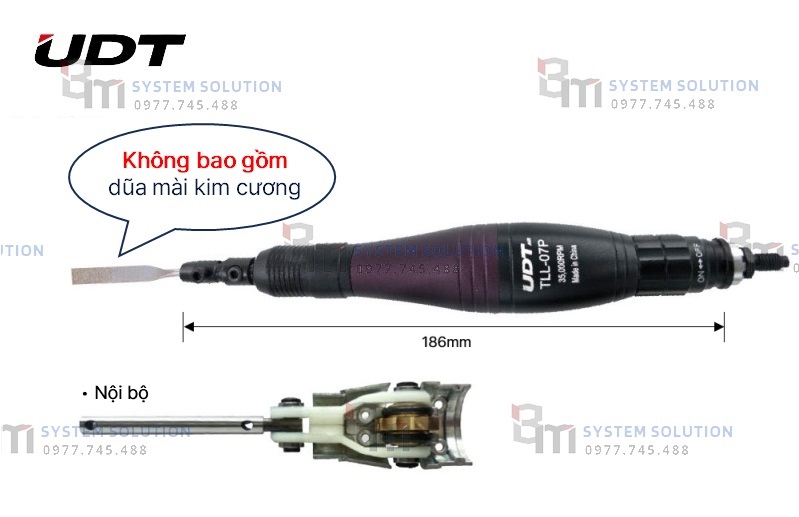

TLL-07P (TURBO LAP LINER) - UDT (Cretec)
[ Chú ý ]
Use appropriate air pressure of 1~3 kgf/cm² ※ If used above an air pressure of 5 kgf/cm², the parts may be damaged and may be dangerous. The parts are very delicate and sensitive, do not bump or drop the product. Straight motion type, if used as left/right motion, the product may be damaged. Standard accessories 3⌀ collet 1ea, collet grinding bar 1ea (excluding mold grinding bar) | Product code | Operating type | Revolutions (RPM) | Operating distance (mm) | Full length (mm) |
| TLL-03P | Straight motion type | 52,000 | 0.3 | 186 |
| TLL-07P | 35,000 | 0.7 | ||
| TLL-12P | 25,000 | 1.2 |
Maker : UDT (Korea)
Made in multinational
