Thiết bị Z-Nano
> Đo chiều dài dao và phát hiện gãy dao
>Không bù, cơ chế đo quang điện tử
>Tốc độ đo 2m/min
>Đường kính dao nhỏ nhất Ø 0.1 mm*
>Có thể thay thế bề mặt đo dễ dàng
>Điều chỉnh mặt phẳng thiết bị với miếng đệm dưới đế
>Thiết bị độ bền cao và tin cậy
>Giải pháp rất kinh tế
* tùy thuộc vào hình dạng công cụ và vật liệu
- Switching signal is generated by shadowing a miniature light barrier
- Enables significantly higher measuring speeds and measuring accuracies than with comparable probes
- Reliable tool breakage detection under the most adverse conditions
- Wear-free and long-term stable
- Ball-bearing precision linear guide
- The functional principle prevents lateral forces acting on the tool
- Very low measuring force
- Measurement of delicate and very small tools
- Z-Nano: Wired
- Z-Nano IR: Infrared transmission
- Z-Nano RC: BRC radio technology
- DUO mode: Sequential control of 2 IR measuring systems with one receiver

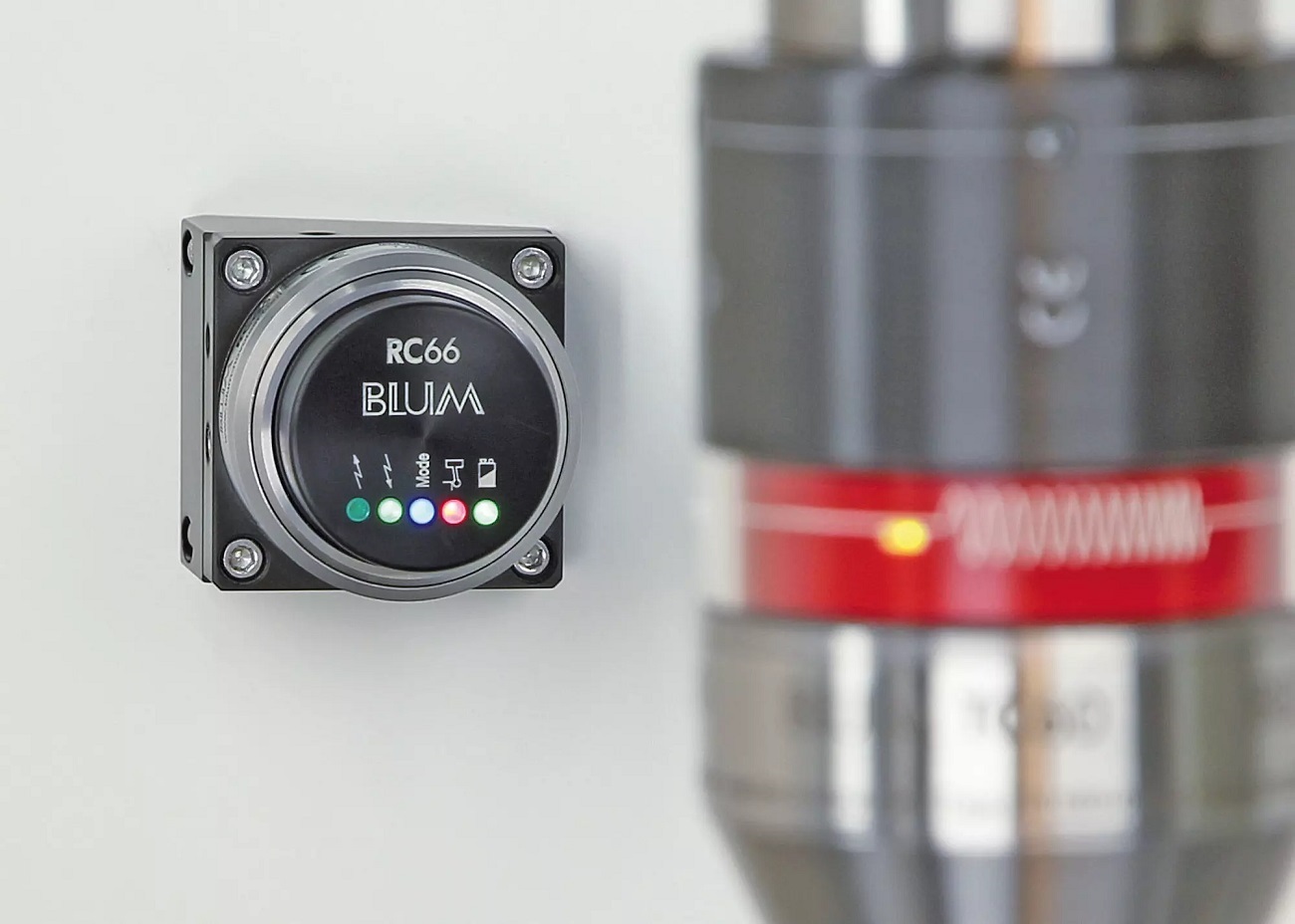

- Sequential control of up to 6 radio measuring systems with one receiver
- TWIN operation: Simultaneous use of 2 radio measuring systems on one machine
- Very long battery life
More product features
- Max. probing speed: 2 m/min
- Switch point repeatability: 0.5 μm 2σ (standard)
- Min. tool diameter: > 0.1 mm*
- Device protection class IP68
- Exchangeable measuring surface
- Extremely robust
* Dependent on tool geometry and material. Tool must not be destroyed by probing forces.
Further information can be found in the respective brochure and in the operating instructions.
The measuring cycles are user-friendly subprograms of the machine control. They can be used on milling and turning machines for the following measuring tasks
- Calibration of the button
- tool length measurement
- tool wear control
- tool breakage control
The measuring cycles are available for many common controls. Your local BLUM representative will be happy to provide you with information about the range of functions available for your controller.
With the optional blowing nozzles from BLUM, the tool and the measuring surface are effectively cleaned of coolant and chips.
