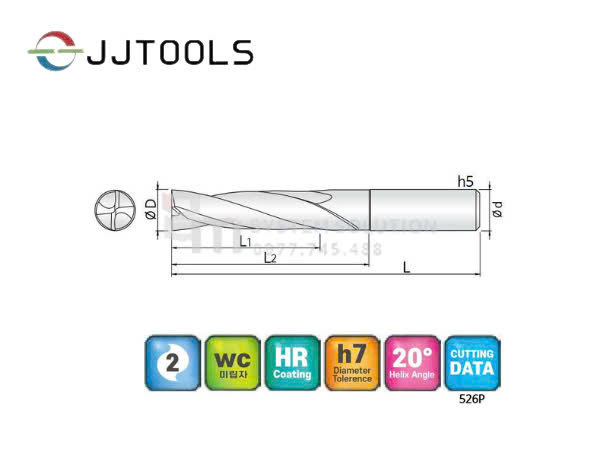

Mũi khoan đầu bằng Flat Drill 2 Me cắt bằng carbide (2FDR)
-
Mũi khoan phẳng dùng cho vật liệu đến HRc50, thép đã tôi luyện (pre-hardened), thép hợp kim, gang.
-
Kiểu lưỡi phẳng (flat type) cho phép gia công xuất sắc trên nhiều bề mặt nghiêng và bề mặt cong.
- Thiết kế rãnh xoắn 20° giúp thoát phoi cực tốt và đảm bảo quá trình khoan ổn định.
-
Giảm thiểu tối đa bavia (vẹt thừa) khi khoan xuyên.
-
Lớp phủ HR mang lại khả năng chịu nhiệt và chống mài mòn tuyệt vời, kéo dài đáng kể tuổi thọ dụng cụ.
HRc50이하, 프리하든강, 합금강, 주철 가공용 플랫 드릴
-
밀날 플랫타입으로 다양한 경사면과 곡면 드릴가공에 탁월한 성능을 발휘합니다.
-
20도 헬릭스를 채택하여 칩배출 성능이 매우 우수합니다.
-
관통 드릴 작업시 버 발생을 최소화 합니다.
-
HR 코팅으로 내열성과 내마모성이 우수, 긴 공구수명을 실현하였습니다.
| Order Number | 날경 | 홈길이 | 유효장 | 전장 | 생크 |
| 2FDR0 020 09S S03 | 0.2 | 0.8 | 0.9 | 50 | 3 |
| 2FDR0 025 011S S03 | 0.25 | 1 | 1.1 | 50 | 3 |
| 2FDR0 030 13S S03 | 0.3 | 1.2 | 1.3 | 50 | 3 |
| 2FDR0 035 015S S03 | 0.35 | 1.4 | 1.5 | 50 | 3 |
| 2FDR0 040 17S S03 | 0.4 | 1.6 | 1.7 | 50 | 3 |
| 2FDR0 045 019S S03 | 0.45 | 1.8 | 1.9 | 50 | 3 |
| 2FDR0 050 22S S03 | 0.5 | 2 | 2.2 | 50 | 3 |
| 2FDR0 055 024S S03 | 0.55 | 2.2 | 2.4 | 50 | 3 |
| 2FDR0 060 26S S03 | 0.6 | 2.4 | 2.6 | 50 | 3 |
| 2FDR0 065 028S S03 | 0.65 | 2.6 | 2.8 | 50 | 3 |
| 2FDR0 070 30S S03 | 0.7 | 2.8 | 3 | 50 | 3 |
| 2FDR0 075 032S S03 | 0.75 | 3 | 3.2 | 50 | 3 |
| 2FDR0 080 34S S03 | 0.8 | 3.2 | 3.4 | 50 | 3 |
| 2FDR0 085 037S S03 | 0.85 | 3.4 | 3.7 | 50 | 3 |
| 2FDR0 090 39S S03 | 0.9 | 3.6 | 3.9 | 50 | 3 |
| 2FDR0 095 041S S03 | 0.95 | 3.8 | 4.1 | 50 | 3 |
| 2FDR0 100 43S S03 | 1 | 4 | 4.3 | 50 | 3 |
| 2FDR0 110 47S S03 | 1.1 | 4.4 | 4.7 | 50 | 3 |
| 2FDR0 120 52S S03 | 1.2 | 4.8 | 5.2 | 50 | 3 |
| 2FDR0 130 56S S03 | 1.3 | 5.2 | 5.6 | 50 | 3 |
| 2FDR0 140 60S S03 | 1.4 | 5.6 | 6 | 50 | 3 |
| 2FDR0 150 65S S03 | 1.5 | 6 | 6.5 | 50 | 3 |
| 2FDR0 160 69S S03 | 1.6 | 6.4 | 6.9 | 50 | 3 |
| 2FDR0 170 73S S03 | 1.7 | 6.8 | 7.3 | 50 | 3 |
| 2FDR0 180 77S S03 | 1.8 | 7.2 | 7.7 | 50 | 3 |
| 2FDR0 190 82S S03 | 1.9 | 7.6 | 8.2 | 50 | 3 |
| 2FDR0 200 86S S04 | 2 | 8 | 8.6 | 50 | 4 |
| 2FDR0 200 98S S04 | 2 | 9.8 |
| 50 | 4 |
| 2FDR0 210 90S S04 | 2.1 | 8.4 | 9 | 50 | 4 |
| 2FDR0 220 95S S04 | 2.2 | 8.8 | 9.5 | 50 | 4 |
| 2FDR0 230 99S S04 | 2.3 | 9.2 | 9.9 | 50 | 4 |
| 2FDR0 241 03S S04 | 2.4 | 9.6 | 10.3 | 50 | 4 |
| 2FDR0 251 08S S04 | 2.5 | 10 | 10.8 | 50 | 4 |
| 2FDR0 261 12S S04 | 2.6 | 10.4 | 11.2 | 50 | 4 |
| 2FDR0 271 16S S04 | 2.7 | 10.8 | 11.6 | 50 | 4 |
| 2FDR0 281 20S S04 | 2.8 | 11.2 | 12 | 50 | 4 |
| 2FDR0 291 25S S04 | 2.9 | 11.6 | 12.5 | 50 | 4 |
| 2FDR0 301 29S S06 | 3 | 12 | 12.9 | 50 | 6 |
| 2FDR0 311 33S S06 | 3.1 | 12.4 | 13.3 | 50 | 6 |
| 2FDR0 321 38S S06 | 3.2 | 12.8 | 13.8 | 50 | 6 |
| 2FDR0 331 42S S06 | 3.3 | 13.2 | 14.2 | 50 | 6 |
| 2FDR0 341 46S S06 | 3.4 | 13.6 | 14.6 | 50 | 6 |
| 2FDR0 351 51S S06 | 3.5 | 14 | 15.1 | 50 | 6 |
| 2FDR0 361 55S S06 | 3.6 | 14.4 | 15.5 | 50 | 6 |
| 2FDR0 371 59S S06 | 3.7 | 14.8 | 15.9 | 50 | 6 |
| 2FDR0 381 63S S06 | 3.8 | 15.2 | 16.3 | 50 | 6 |
| 2FDR0 391 68S S06 | 3.9 | 15.6 | 16.8 | 50 | 6 |
| 2FDR0 401 72S S06 | 4 | 16 | 17.2 | 50 | 6 |
| 2FDR0 411 76S S06 | 4.1 | 16.4 | 17.6 | 60 | 6 |
| 2FDR0 421 81S S06 | 4.2 | 16.8 | 18.1 | 60 | 6 |
| 2FDR0 431 85S S06 | 4.3 | 17.2 | 18.5 | 60 | 6 |
| 2FDR0 441 89S S06 | 4.4 | 17.6 | 18.9 | 60 | 6 |
| 2FDR0 451 94S S06 | 4.5 | 18 | 19.4 | 60 | 6 |
| 2FDR0 461 98S S06 | 4.6 | 18.4 | 19.8 | 60 | 6 |
| 2FDR0 472 02S S06 | 4.7 | 18.8 | 20.2 | 60 | 6 |
| 2FDR0 482 06S S06 | 4.8 | 19.2 | 20.6 | 60 | 6 |
| 2FDR0 492 11S S06 | 4.9 | 19.6 | 21.1 | 60 | 6 |
| 2FDR0 502 15S S06 | 5 | 20 | 21.5 | 60 | 6 |
| 2FDR0 512 19S S06 | 5.1 | 20.4 | 21.9 | 60 | 6 |
| 2FDR0 522 24S S06 | 5.2 | 20.8 | 22.4 | 60 | 6 |
| 2FDR0 532 28S S06 | 5.3 | 21.2 | 22.8 | 60 | 6 |
| 2FDR0 542 32S S06 | 5.4 | 21.6 | 23.2 | 60 | 6 |
| 2FDR0 552 37S S06 | 5.5 | 22 | 23.7 | 60 | 6 |
| 2FDR0 562 41S S06 | 5.6 | 22.4 | 24.1 | 60 | 6 |
| 2FDR0 572 45S S06 | 5.7 | 22.8 | 24.5 | 60 | 6 |
| 2FDR0 582 49S S06 | 5.8 | 23.2 | 24.9 | 60 | 6 |
| 2FDR0 592 54S S06 | 5.9 | 23.6 | 25.4 | 60 | 6 |
| 2FDR0 602 58S S06 | 6 | 24 | 25.8 | 60 | 6 |
| 2FDR0 612 62S S08 | 6.1 | 24.4 | 26.2 | 70 | 8 |
| 2FDR0 622 67S S08 | 6.2 | 24.8 | 26.7 | 70 | 8 |
| 2FDR0 632 71S S08 | 6.3 | 25.2 | 27.1 | 70 | 8 |
| 2FDR0 642 75S S08 | 6.4 | 25.6 | 27.5 | 70 | 8 |
| 2FDR0 652 80S S08 | 6.5 | 26 | 28 | 70 | 8 |
| 2FDR0 662 84S S08 | 6.6 | 26.4 | 28.4 | 70 | 8 |
| 2FDR0 672 88S S08 | 6.7 | 26.8 | 28.8 | 70 | 8 |
| 2FDR0 682 92S S08 | 6.8 | 27.2 | 29.2 | 70 | 8 |
| 2FDR0 692 97S S08 | 6.9 | 27.6 | 29.7 | 70 | 8 |
| 2FDR0 703 01S S08 | 7 | 28 | 30.1 | 70 | 8 |
| 2FDR0 713 05S S08 | 7.1 | 28.4 | 30.5 | 70 | 8 |
| 2FDR0 723 10S S08 | 7.2 | 28.8 | 31 | 70 | 8 |
| 2FDR0 733 14S S08 | 7.3 | 29.2 | 31.4 | 70 | 8 |
| 2FDR0 743 18S S08 | 7.4 | 29.6 | 31.8 | 70 | 8 |
| 2FDR0 753 23S S08 | 7.5 | 30 | 32.3 | 70 | 8 |
| 2FDR0 763 27S S08 | 7.6 | 30.4 | 32.7 | 70 | 8 |
| 2FDR0 773 31S S08 | 7.7 | 30.8 | 33.1 | 70 | 8 |
| 2FDR0 783 35S S08 | 7.8 | 31.2 | 33.5 | 70 | 8 |
| 2FDR0 793 40S S08 | 7.9 | 31.6 | 34 | 70 | 8 |
| 2FDR0 803 44S S08 | 8 | 32 | 34.4 | 70 | 8 |
| 2FDR0 813 48S S10 | 8.1 | 32.4 | 34.8 | 80 | 10 |
| 2FDR0 823 53S S10 | 8.2 | 32.8 | 35.3 | 80 | 10 |
| 2FDR0 833 57S S10 | 8.3 | 33.2 | 35.7 | 80 | 10 |
| 2FDR0 843 61S S10 | 8.4 | 33.6 | 36.1 | 80 | 10 |
| 2FDR0 853 66S S10 | 8.5 | 34 | 36.6 | 80 | 10 |
| 2FDR0 863 70S S10 | 8.6 | 34.4 | 37 | 80 | 10 |
| 2FDR0 873 74S S10 | 8.7 | 34.8 | 37.4 | 80 | 10 |
| 2FDR0 883 78S S10 | 8.8 | 35.2 | 37.8 | 80 | 10 |
| 2FDR0 893 83S S10 | 8.9 | 35.6 | 38.3 | 80 | 10 |
| 2FDR0 903 87S S10 | 9 | 36 | 38.7 | 80 | 10 |
| 2FDR0 913 91S S10 | 9.1 | 36.4 | 39.1 | 80 | 10 |
| 2FDR0 923 96S S10 | 9.2 | 36.8 | 39.6 | 80 | 10 |
| 2FDR0 934 00S S10 | 9.3 | 37.2 | 40 | 80 | 10 |
| 2FDR0 944 04S S10 | 9.4 | 37.6 | 40.4 | 80 | 10 |
| 2FDR0 954 09S S10 | 9.5 | 38 | 40.9 | 80 | 10 |
| 2FDR0 964 13S S10 | 9.6 | 38.4 | 41.3 | 80 | 10 |
| 2FDR0 974 17S S10 | 9.7 | 38.8 | 41.7 | 80 | 10 |
| 2FDR0 984 21S S10 | 9.8 | 39.2 | 42.1 | 80 | 10 |
| 2FDR0 994 26S S10 | 9.9 | 39.6 | 42.6 | 80 | 10 |
| 2FDR1 004 30S S10 | 10 | 40 | 43 | 80 | 10 |
| 2FDR1 014 34S S12 | 10.1 | 40.4 | 43.4 | 90 | 12 |
| 2FDR1 024 39S S12 | 10.2 | 40.8 | 43.9 | 90 | 12 |
| 2FDR1 034 43S S12 | 10.3 | 41.2 | 44.3 | 90 | 12 |
| 2FDR1 044 47S S12 | 10.4 | 41.6 | 44.7 | 90 | 12 |
| 2FDR1 054 52S S12 | 10.5 | 42 | 45.2 | 90 | 12 |
| 2FDR1 064 56S S12 | 10.6 | 42.4 | 45.6 | 90 | 12 |
| 2FDR1 074 60S S12 | 10.7 | 42.8 | 46 | 90 | 12 |
| 2FDR1 084 64S S12 | 10.8 | 43.2 | 46.4 | 90 | 12 |
| 2FDR1 094 69S S12 | 10.9 | 43.6 | 46.9 | 90 | 12 |
| 2FDR1 104 73S S12 | 11 | 44 | 47.3 | 90 | 12 |
| 2FDR1 114 77S S12 | 11.1 | 44.4 | 47.7 | 90 | 12 |
| 2FDR1 124 82S S12 | 11.2 | 44.8 | 48.2 | 90 | 12 |
| 2FDR1 134 86S S12 | 11.3 | 45.2 | 48.6 | 90 | 12 |
| 2FDR1 144 90S S12 | 11.4 | 45.6 | 49 | 90 | 12 |
| 2FDR1 154 95S S12 | 11.5 | 46 | 49.5 | 90 | 12 |
| 2FDR1 164 99S S12 | 11.6 | 46.4 | 49.9 | 90 | 12 |
| 2FDR1 175 03S S12 | 11.7 | 46.8 | 50.3 | 90 | 12 |
| 2FDR1 185 07S S12 | 11.8 | 47.2 | 50.7 | 90 | 12 |
| 2FDR1 195 12S S12 | 11.9 | 47.6 | 51.2 | 90 | 12 |
| 2FDR1 205 16S S12 | 12 | 48 | 51.6 | 90 | 12 |
| 2FDR1 205 70S S12 | 12 | 57 |
| 90 | 12 |
| 2FDR1 215 20S S14 | 12.1 | 48.4 | 52 | 100 | 14 |
| 2FDR1 225 25S S14 | 12.2 | 48.8 | 52.5 | 100 | 14 |
| 2FDR1 235 29S S14 | 12.3 | 49.2 | 52.9 | 100 | 14 |
| 2FDR1 245 33S S14 | 12.4 | 49.6 | 53.3 | 100 | 14 |
| 2FDR1 255 38S S14 | 12.5 | 50 | 53.8 | 100 | 14 |
| 2FDR1 265 42S S14 | 12.6 | 50.4 | 54.2 | 100 | 14 |
| 2FDR1 275 46S S14 | 12.7 | 50.8 | 54.6 | 100 | 14 |
| 2FDR1 285 50S S14 | 12.8 | 51.2 | 55 | 100 | 14 |
| 2FDR1 295 55S S14 | 12.9 | 51.6 | 55.5 | 100 | 14 |
| 2FDR1 305 59S S14 | 13 | 52 | 55.9 | 100 | 14 |
| 2FDR1 315 63S S14 | 13.1 | 52.4 | 56.3 | 100 | 14 |
| 2FDR1 325 68S S14 | 13.2 | 52.8 | 56.8 | 100 | 14 |
| 2FDR1 335 72S S14 | 13.3 | 53.2 | 57.2 | 100 | 14 |
| 2FDR1 345 76S S14 | 13.4 | 53.6 | 57.6 | 100 | 14 |
| 2FDR1 355 81S S14 | 13.5 | 54 | 58.1 | 100 | 14 |
| 2FDR1 365 85S S14 | 13.6 | 54.4 | 58.5 | 100 | 14 |
| 2FDR1 375 89S S14 | 13.7 | 54.8 | 58.9 | 100 | 14 |
| 2FDR1 385 93S S14 | 13.8 | 55.2 | 59.3 | 100 | 14 |
| 2FDR1 395 98S S14 | 13.9 | 55.6 | 59.8 | 100 | 14 |
| 2FDR1 406 02S S14 | 14 | 56 | 60.2 | 100 | 14 |
| 2FDR1 416 06S S16 | 14.1 | 56.4 | 60.6 | 105 | 16 |
| 2FDR1 426 11S S16 | 14.2 | 56.8 | 61.1 | 105 | 16 |
| 2FDR1 436 15S S16 | 14.3 | 57.2 | 61.5 | 105 | 16 |
| 2FDR1 446 19S S16 | 14.4 | 57.6 | 61.9 | 105 | 16 |
| 2FDR1 456 24S S16 | 14.5 | 58 | 62.4 | 105 | 16 |
| 2FDR1 466 28S S16 | 14.6 | 58.4 | 62.8 | 105 | 16 |
| 2FDR1 476 32S S16 | 14.7 | 58.8 | 63.2 | 105 | 16 |
| 2FDR1 486 36S S16 | 14.8 | 59.2 | 63.6 | 105 | 16 |
| 2FDR1 496 41S S16 | 14.9 | 59.6 | 64.1 | 105 | 16 |
| 2FDR1 506 45S S16 | 15 | 60 | 64.5 | 105 | 16 |
| 2FDR1 516 49S S16 | 15.1 | 60.4 | 64.9 | 115 | 16 |
| 2FDR1 526 54S S16 | 15.2 | 60.8 | 65.4 | 115 | 16 |
| 2FDR1 536 58S S16 | 15.3 | 61.2 | 65.8 | 115 | 16 |
| 2FDR1 546 62S S16 | 15.4 | 61.6 | 66.2 | 115 | 16 |
| 2FDR1 556 67S S16 | 15.5 | 62 | 66.7 | 115 | 16 |
| 2FDR1 566 71S S16 | 15.6 | 62.4 | 67.1 | 115 | 16 |
| 2FDR1 576 75S S16 | 15.7 | 62.8 | 67.5 | 115 | 16 |
| 2FDR1 586 79S S16 | 15.8 | 63.2 | 67.9 | 115 | 16 |
| 2FDR1 596 84S S16 | 15.9 | 63.6 | 68.4 | 115 | 16 |
| 2FDR1 606 88S S16 | 16 | 64 | 68.8 | 115 | 16 |
| 2FDR1 657 10S S18 | 16.5 | 66 | 71 | 125 | 18 |
| 2FDR1 707 31S S18 | 17 | 68 | 73.1 | 125 | 18 |
| 2FDR1 757 53S S18 | 17.5 | 70 | 75.3 | 125 | 18 |
| 2FDR1 807 74S S18 | 18 | 72 | 77.4 | 125 | 18 |
| 2FDR1 857 96S S20 | 18.5 | 74 | 79.6 | 135 | 20 |
| 2FDR1 908 17S S20 | 19 | 76 | 81.7 | 135 | 20 |
| 2FDR1 958 39S S20 | 19.5 | 78 | 83.9 | 145 | 20 |
| 2FDR2 008 60S S20 | 20 | 80 | 86 | 145 | 20 |
